Introduction

Not long ago, when managing spacing on the web, our first thought would often be to use margin. Consider a card component, for instance, which includes an image, title, and description. In such a layout, margin was the go-to solution for controlling the spacing between these elements.

In the following snippet, margin is used to add spacing below the image and title.

.card-thumb {
  margin-bottom: 12px;
}

.card-title {
  margin-bottom: 12px;
}

See the following example:

Homemade cookies

The best in class cookies at the comfort of your home.

While this works, it’s tricky to manage the spacing if an element is not displayed. Here is an example assuming that the description isn’t available.

Homemade cookies

In this case, the margin on the card title is still there, causing an inconsistency in the layout we are building. There are a lot of ways to overcome that, but for the sake of simplicity, we can add a variation class to the card.

<div class="card no-desc">
  <!-- Card content -->
</div>
.card.no-desc .card-title {
  margin-bottom: 0;
}

Homemade cookies

The problem is solved, but this isn’t an optimal solution. What if we decided to add a link? We need to add spacing again.

See the following demo and notice how there is no spacing between the description and the link.

Homemade cookies

The best in class cookies at the comfort of your home.

Again, we need to add spacing to the card’s description element.

.card-thumb {
  margin-bottom: 12px;
}

.card-title {
  margin-bottom: 12px;
}

.card-desc {
  margin-bottom: 12px;
}

It’s better now.

Homemade cookies

The best in class cookies at the comfort of your home.

As you just saw, managing spacing with CSS margin requires more work. I don’t say that it’s complex or something, but it needs more time and effort.

Things to care about when using margins

Component layout

The thing with margins is that you need to change them if the component layout changes. In this example, let’s explore the horizontal variation of the card.

Homemade cookies

The best in class cookies at the comfort of your home.

Notice how the card still has the bottom margin. We need to reset that.

.card--horizontal .card-thumb {
  margin-bottom: 0;
}

Or even better, to use container queries.

@container card (min-width: 300px) {
  .card-thumb {
    margin-bottom: 0;
    margin-right: 12px;
  }
}

Homemade cookies

The best in class cookies at the comfort of your home.

It works but takes more time and effort.

The last child

When using margin, we need to make sure that the last item has a margin of zero. This can be simple for a one-direction layout.

li:last-child {
  margin-bottom: 0;
}
  • Item
  • Item
  • Item
  • Item
  • Item

For multi-direction lists, we need to add a negative margin for both sides.

In the following example, we have a list of chips. To add the spacing, I used margins on the right and bottom for each.

.chip-item {
  margin-right: 0.5rem;
  margin-bottom: 0.5rem;
}

Toggle the checkbox to see the margins in action.

  • UI/UX
  • JavaScript
  • Frontend
  • React
  • HTML
  • Web Design
  • Defensive CSS
  • Web Development
  • UX Design
  • CSS Grid

Notice the distance between myself and the list above.

We need to reset the bottom margin and remove the right margin from the last chip.

.chip-item:last-child {
  margin-right: 0;
}
  • UI/UX
  • JavaScript
  • Frontend
  • React
  • HTML
  • Web Design
  • Defensive CSS
  • Web Development
  • UX Design
  • CSS Grid

Notice the distance between myself and the list above.

Next, the bottom margin. To remove it from the last row, we need to add a negative margin on the parent.

.chips-wrapper {
  margin-bottom: -0.5rem;
}

I added a line of text below the chips list to make it easier to see the difference. Try to toggle the “negative margin” checkbox.

  • UI/UX
  • JavaScript
  • Frontend
  • React
  • HTML
  • Web Design
  • Defensive CSS
  • Web Development
  • UX Design
  • CSS Grid

Notice the distance between myself and the list above.

When toggled, the bottom margin is reset.

I know that the line of text and the chips wrapper are overlapping, but that's the point. If you see that, that means we've successfully reset the bottom margin on the parent.

Dynamic content

One of the main challenges of using margins in CSS is that we can’t predict when to add or remove a space. Oftentimes, we’ll end up with multiple CSS breakpoints to manage spacing when the content wraps into a new line.

We can use flexbox wrapping to achieve that. Let’s try it with margins.

In the following example, we have a page header that consists of:

  • Title and description
  • Action button
<div class="header">
  <div class="headerStart">
    <!-- Title and description -->
  </div>
  <div class="headerEnd">
    <!-- Action button -->
  </div>
</div>

Try to resize me and see how the margin is still on the right side.

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

To add a margin between them, I used the following:

.headerStart {
  margin-right: 1rem;
}

Try to resize me and see how the margin is still on the right side.

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

It works, but when we resize the component, we need to switch the margin to be on the bottom side.

It’s possible to use a media query to check for when the item wraps, but it will still be a guess and might not work for all cases.

.headerStart {
  margin-bottom: 1rem;
}

@media (min-width: 500px) {
  .headerStart {
    margin-right: 1rem;
    margin-bottom: 0;
  }
}

Try to resize the container below.

Try to resize me and see how the margin is still on the right side.

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

Another solution is to add padding for both the start and end elements, then use a negative margin. It will work, but again, it’s still a hack and not ideal for all use cases.

.header {
  --space: 8px;
  padding: var(--space);
}

.headerStart,
.headerEnd {
  padding: var(--space);
}

Here it is in action.

Try to resize me and see how the margin is still on the right side.

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

I will explore later on solving this with a gap.

Bidirectional margins

When building a layout that needs to work with both left-to-right (LTR) and right-to-left (RTL) layouts, the margin should be flipped.

Toggle the “RTL layout” in the following demo. Notice how the margin is still on the right side.

Try to resize me and see how the margin is still on the right side.

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

The fix is to flip the margin if the page direction is rtl.

.item {
  margin-right: 1rem;
}

html[dir="rtl"] .item {
  margin-right: 0;
  margin-left: 1rem;
}

It’s recommended to use CSS logical properties as it will make the layout work without manually flipping it.

.item {
  margin-inline-end: 1rem;
}

Try to resize me and see how the margin is still on the right side.

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

If you want to learn more about styling for RTL layouts, I recommend reading the RTL Styling 101 guide by yours truly.

Pre-gap gutters with flexbox and negative margins

When flexbox first came out, I learned about a concept from Harry Roberts to mock gutters between flex items. Flexbox gap wasn’t there at the time of using this technique.

The concept is to add a margin on the left and bottom side of each child, then reset that with a negative margin on the parent.

.wrapper {
  --gutter: 1rem;
  display: flex;
  flex-wrap: wrap;
  margin-left: calc(var(--gutter) * -1);
}

.wrapper > * {
  flex: 0 0 calc((100% / 3) - var(--gutter));
  margin-bottom: var(--gutter);
  margin-left: var(--gutter);
}

Here is an example of it in action. Toggle the “Outline” or the “Negative margin” checkbox and see what happens.

  • Hummus Platter

  • Shawarma Wrap

  • Falafel Balls

Did you notice that by default, the grid isn’t aligned? The left spacing is larger than the right one. When the negative margin is toggled, it’s fixed.

I used this technique because flexbox support was very good and we didn’t have a proper way to add gutters. Meet the gap property!

The gap property

In simple words, the gap property is used to add gutters between flexbox or grid items. Let’s take the previous example. It’s a shorthand for column-gap and row-gap.

.wrapper {
  --gutter: 1rem;
  display: flex;
  flex-wrap: wrap;
  gap: var(--gutter);
}

See it in action.

12px
  • Hummus Platter

  • Shawarma Wrap

  • Falafel Balls

Browser support for gap

At first, the gap property worked only in CSS grid. This was in early 2017. Three years later, gap became supported for both grid and flexbox and Safari followed in 2021.

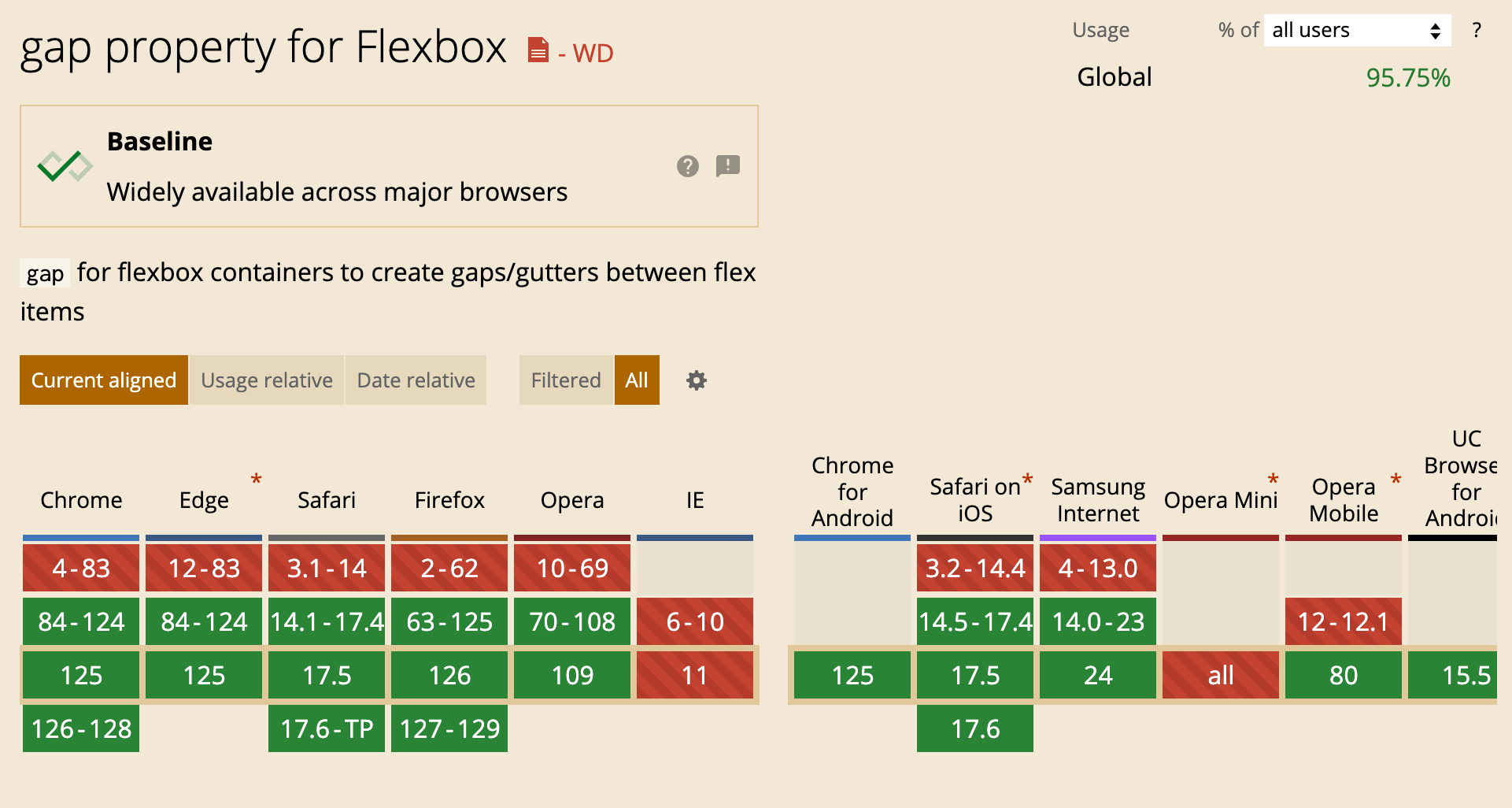

Gap for flexbox support fron Can I Use website.

Unfortunately, we can’t detect support for gap when used with flexbox.

@supports (gap: 1rem) {
  /* This will always work */
}

The browser doesn’t know if gap: 1rem is meant for flexbox or grid. We can detect gap support for flexbox via Javascript. I wrote about this if you want to learn more.

Reasons to use CSS gap

It works when child items wrap

When using flexbox or grid, it’s expected to allow the child items to wrap into a new line. When that happens, the CSS gap just works.

Let’s take the example of a page header.

.header {
  display: flex;
  flex-wrap: wrap;
  gap: 1rem;
}

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

The gap works conditionally. It will dynamically apply column-gap or row-gap based on the context.

It works with bidirectional layouts

If we want to flip the layout to RTL, we can do that without worrying about flipping anything. CSS gap will flip the spacing itself based on the layout direction.

.header {
  display: flex;
  flex-wrap: wrap;
  gap: 1rem;
}

Ahmad Shadeed

I design and build web and mobile experiences and teach others to do so.

As simple as that.

It works with both grid and flexbox

What I also like about CSS gap is that it works for both flexbox and grid. For example, if we have a flex container, changing it to a grid will maintain the same gap.

.page-header {
  display: flex;
  flex-wrap: wrap;
  gap: 1rem;
}

/* Variation of the page header */
.page-header--full {
  display: grid;
  grid-template-columns: 1fr 1fr;
  /* No need to add gap again */
}

We can mix gap and margins

Using the gap property doesn’t mean that we can’t use margins or padding. We can mix them and use whatever we want.

See the following example:

Logo

HomeAboutWorksContact

I used gap to add a space between the logo and the navigation. Within the navigation, I want the “Contact” link to be on the far right.

.nav {
  flex: 1;
  display: flex;
  flex-wrap: wrap;
  gap: 1rem;
}

.nav-item:last-child {
  margin-inline-start: auto;
}

Neat, right?

If you can’t use gap, at least do:

Add margin or padding to the appropriate element

It’s common to add a margin for a specific child, then find out later that it will be removed in specific variations.

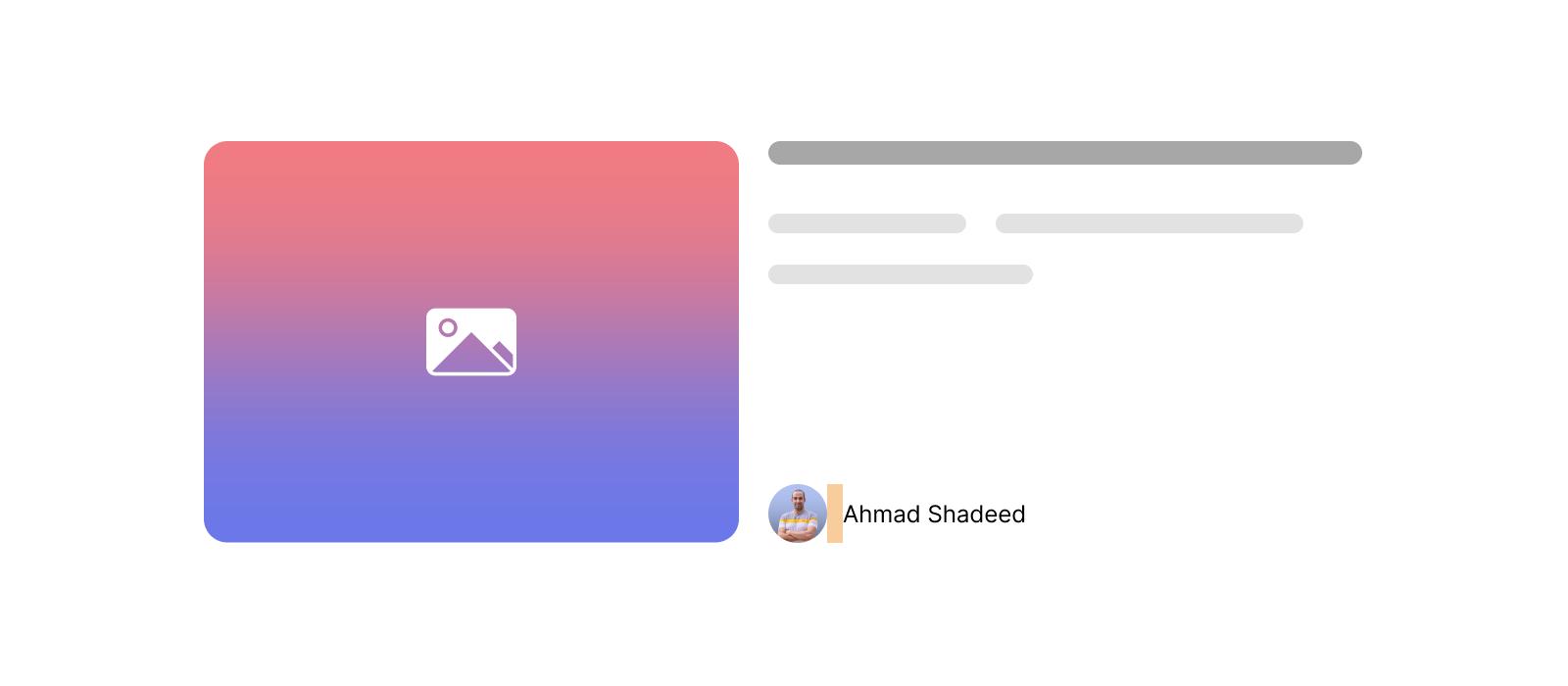

In the following figure, I added a margin-left to the author’s name.

.name {
  margin-left: 0.5rem;
}

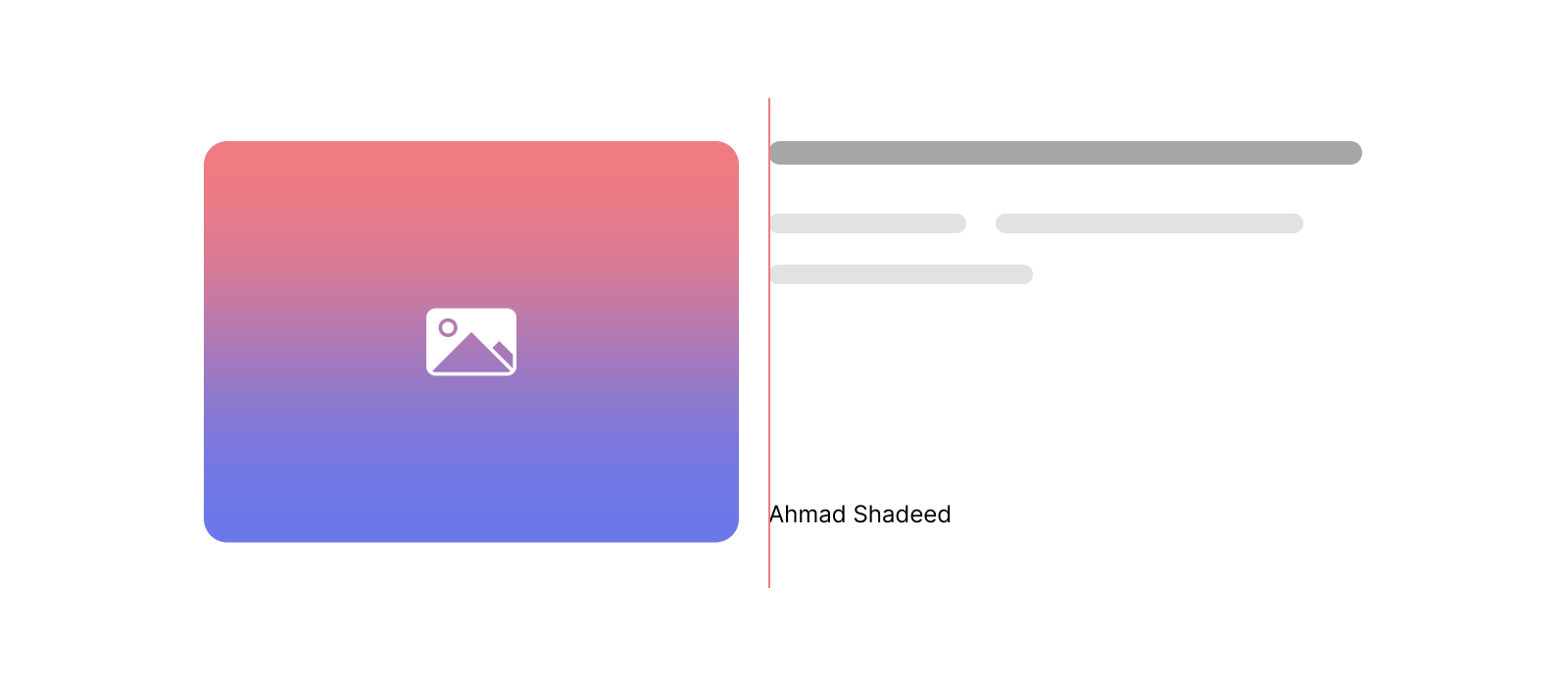

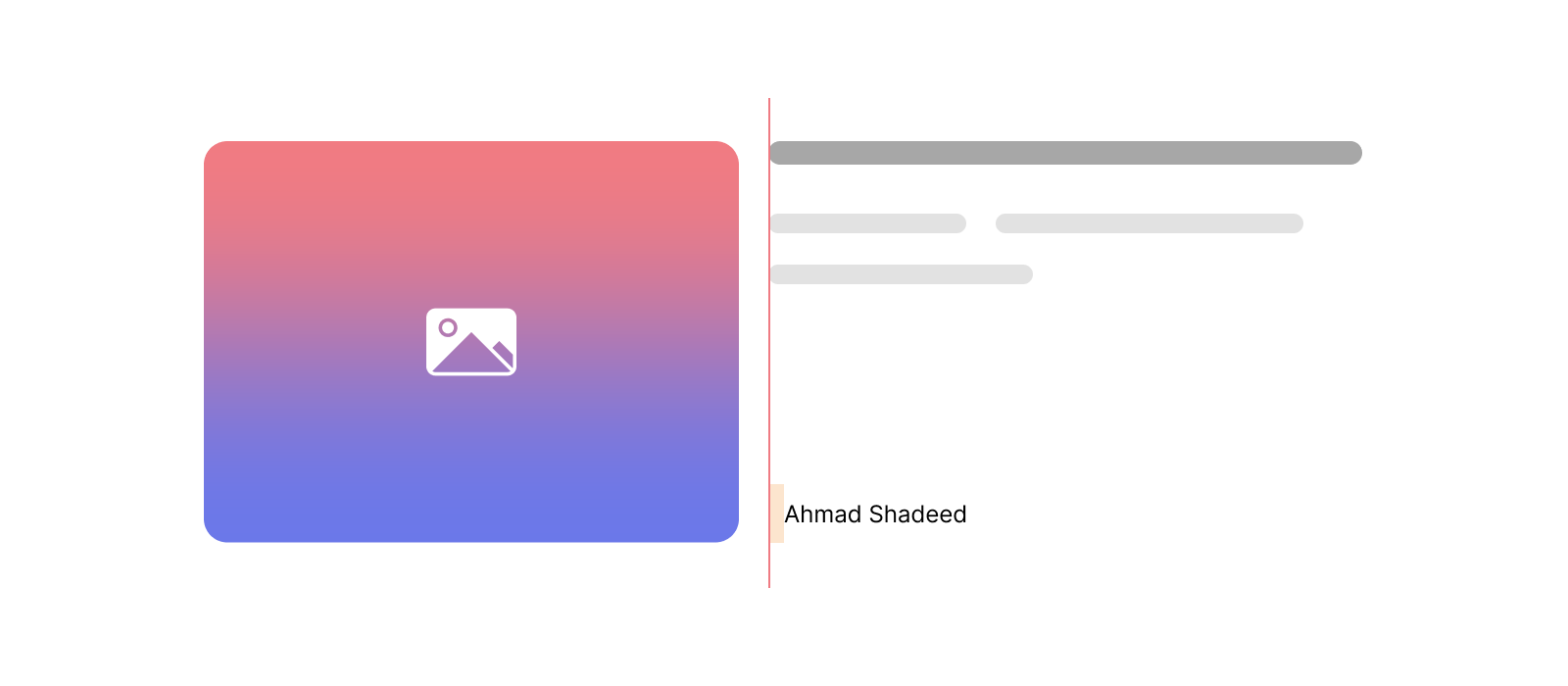

For some reason, the designer decided to remove the author’s avatar, and now we ended up with a space because the margin was added to the name.

We can avoid that by adding the margin to the author’s avatar instead.

.avatar {
  margin-right: 0.5rem;
}

Use logical properties

The support for CSS logical properties is getting better. Use them so your margins and paddings can work regardless of the page direction.

Test and ask questions

Building a UI that doesn’t break is impossible, but at least, you can reduce the issues that might happen:

  • Ask questions: what will happen if there is only one item? or do you expect another variation of this component that will do X and Y?
  • Make sure to stress-test the UI for any spacing issues.

Examples of spacing usages from Threads app

I’m a fan of Threads app CSS. I got their new layout design at the time of writing this article.

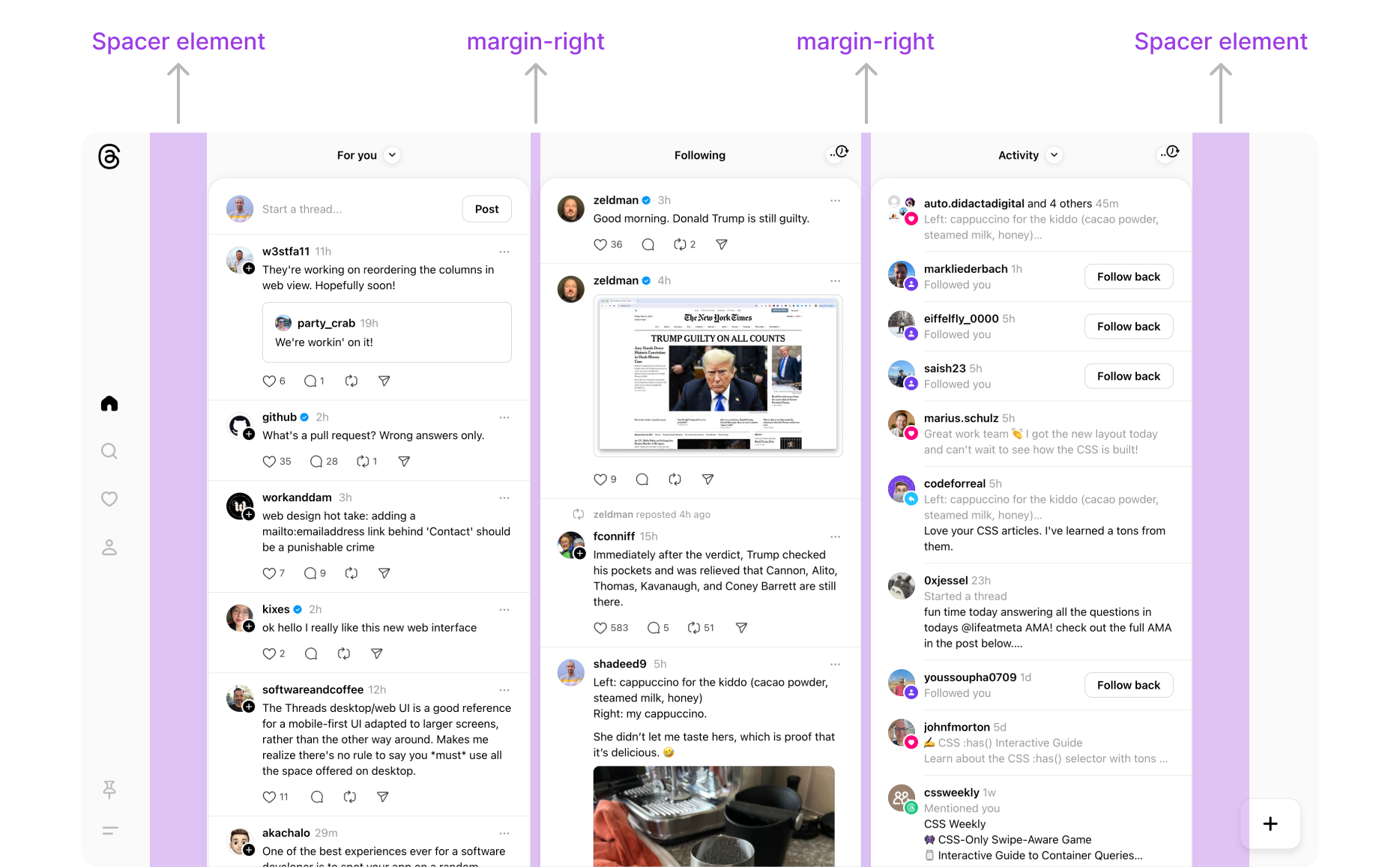

In the following figure, we have the main layout which consists of three columns.

The spacing between them is a margin. Something like:

.col {
  margin-right: 12px;
}

.col:last-child {
  margin-right: 0;
}

Interesting, right? You might be thinking: “Why I should use gap if it’s not supported well?” or “If Meta isn’t using it, why should I?”

The answer is simple: just use what works for your case. There is no zero or ones.

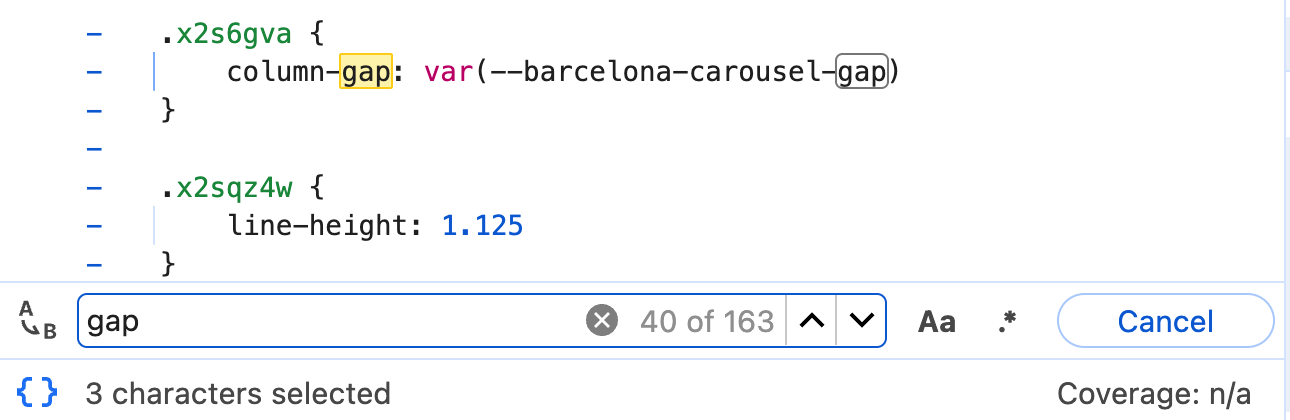

A quick search in the CSS revealed over 100 uses of the column-gap or the row-gap properties.

Cool.

Outro

I hope that I convinced you to use gap more than often. At the end of the day, use whatever works for your case. The most important thing is to build the experience for a user to complete the job they need.

Thank you.
