One of the best gifts we have as front-end developers is the ability to see how something is implemented by simply inspecting a website and see how the CSS works behind the scenes. Say an interesting effect that you wonder how it was done? Inspect element and the answer is waiting for you. On the other hand, this is not possible for back-end developers, since the source code is gone the moment server-side rendering happens.
For me, inspecting elements in the DevTools make me curious about learning new things and making myself a better front-end developer. In this article, I will highlight some of the interesting and useful things that I learned while being curious about other’s work.
Let’s get curious!
Instagram Single Post Page

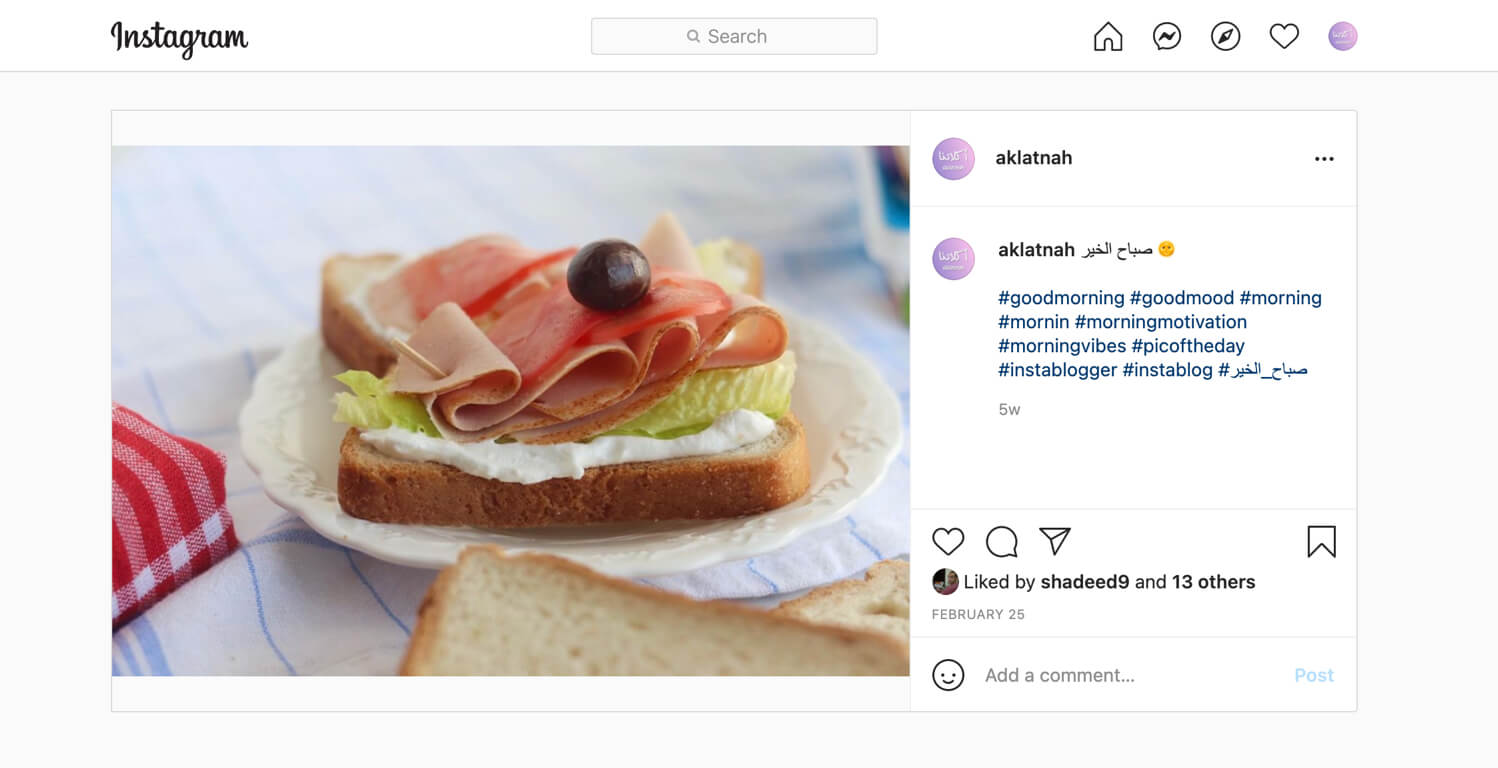

For this example, we will go through the single post page from Instagram. I found some interesting bits there.
From the first glance, you might be tempted to think that the section will be divided into parts:
- The image
- The sidebar on the right

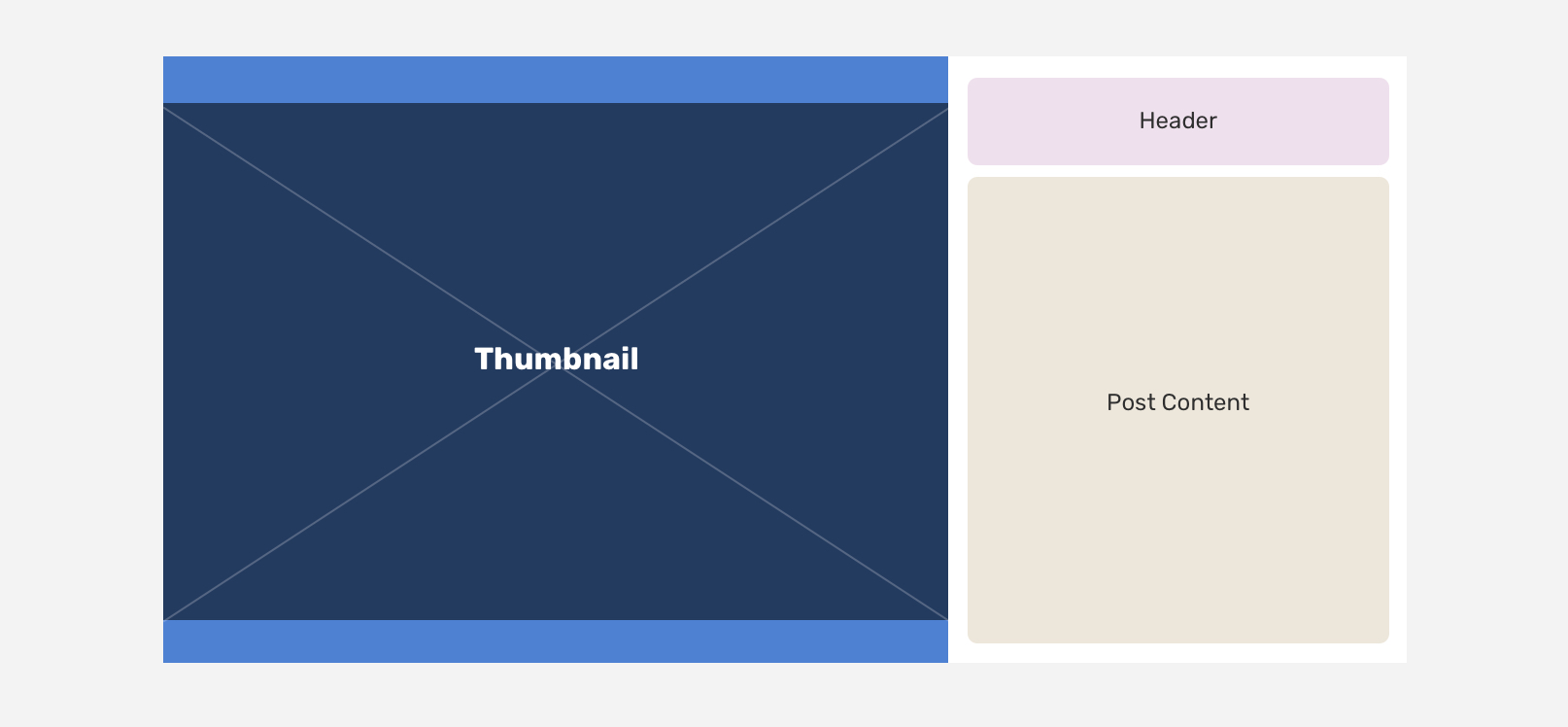

The short answer is no. It’s a bit more complex than dividing the section into two parts. Since this section is expected to work on multiple viewports, its content should be ordered in a specific way. Let me show you a blueprint of the design so we can focus a bit more.
Here is the HTML for the above.
<article class="post">
<header class="post__header"></header>
<button class="post__menu"></button>
<div class="post__thumb"></div>
<div class="post__content">
<section class="post__actions"></section>
<section class="post__likes"></section>
<div class="post__desc"></div>
<time class="post__date"></time>
<section class="post__comments"></section>
</div>
</article>

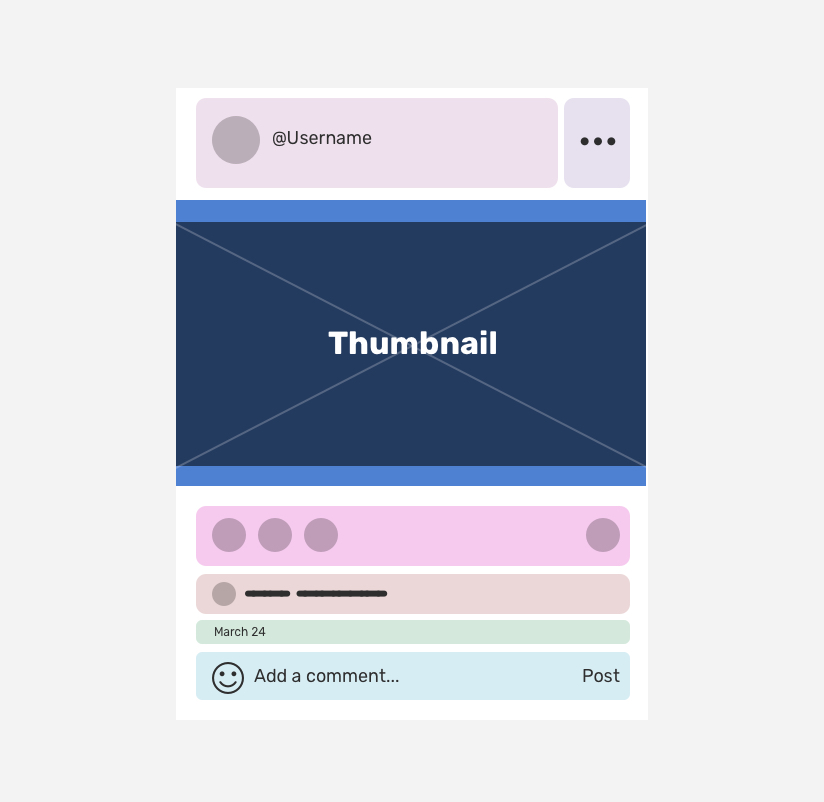

The interesting bit is that the above is a mobile-first HTML. If you look closely, you will notice that the HTML source order matches the mobile design below.
Let’s get into some things that I noticed while inspecting how the Instagram team implemented the above in CSS.
There is no CSS Grid or Flexbox used for the layout
The layout was done using absolute positioning in CSS. From the first glance, you might expect something like:
.post {
display: grid;
grid-template-columns: minmax(10px, 1fr) 335px;
}
That wasn’t the cause as it’s not possible to do this with the HTML we have. It might be possible by using CSS grid features, but not sure why the IG team went with absolute positioning.
The thumbnail has a huge margin-right
:
- It works as a way to give the rest of the available space to it.
- It makes room for the UI elements on the right (Header, description, actions..etc)
.post__thumb {
margin-right: 335px;
min-height: 450px;
}
I like that they added min-height
to account for rectangle-like images.

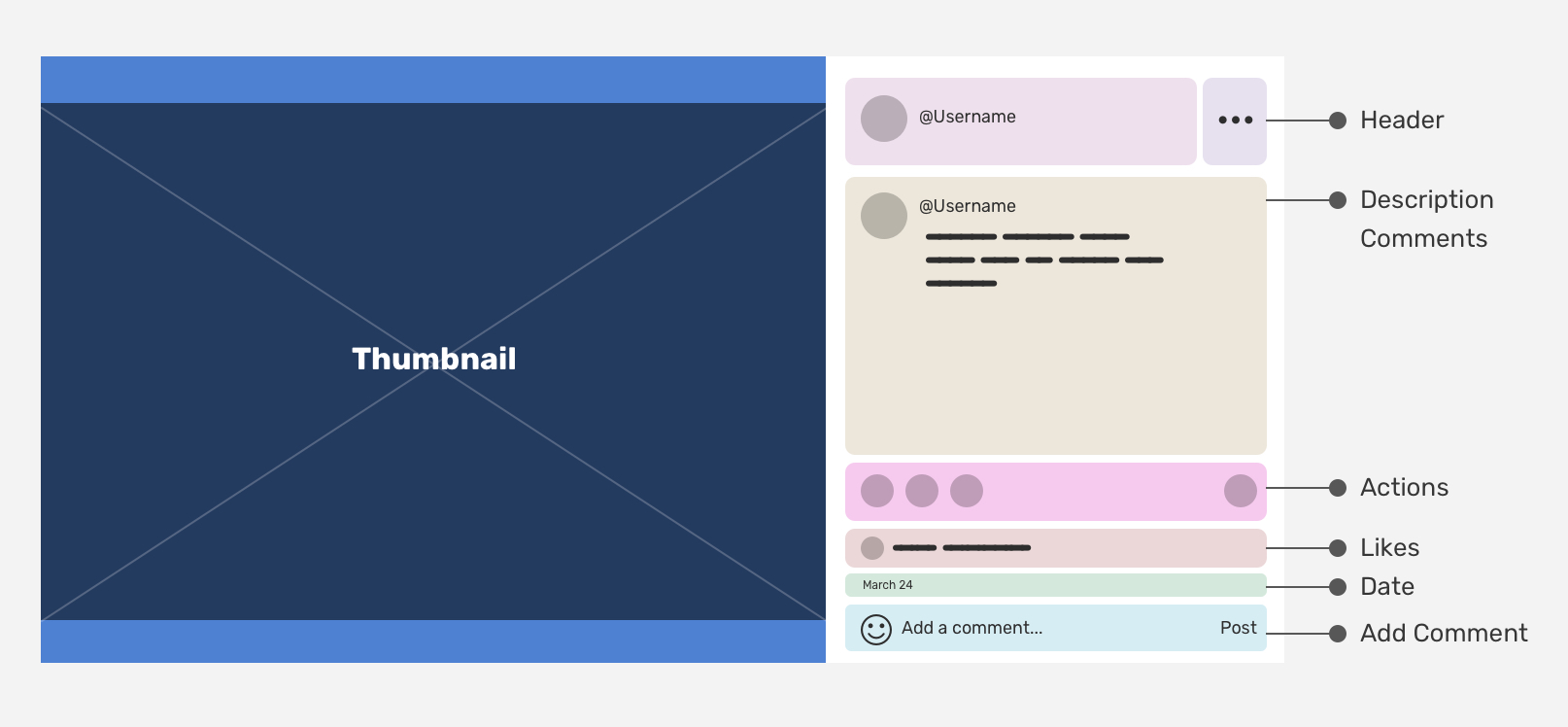

In the figure below, I highlighted the main design elements so I can make it easier for you to understand the next.
The .post__content
element is absolutely positioned with a top
value of 72px
. This value is equal to the header height. Here is how the team did it:
.post__content {
position: absolute;
right: 0;
top: 72px;
bottom: 0;
width: 335px;
}
Yes, you might be surprised to see “fixed-width” values like this, but that’s how it works for a website with millions of users. If it was for me, I might use CSS variables like this:
:root {
--post-header-height: 72px;
--post-content: 335px;
}
.post__content {
top: var(--post-header-height);
width: var(--post-content);
}
That way, we can get the post header height via JavaScript and feed it to the CSS variable. Though I’m not sure why they didn’t use CSS variables (Even though they’re already using them for colors).
Heavy use of CSS Flexbox
To control the UI elements order on desktop vs mobile, the order
property was used.
.post__actions {
order: 2;
}
.post__likes {
order: 3;
}
.post__desc {
order: 1;
}
.post__date {
order: 4;
}
.post__comments {
order: 5;
}
Even though the above works, but it’s confusing when I tab via the keyboard since the visual order is not as the HTML source order. This is not good for accessibility.
Aspect ratio for the image
Since aspect-ratio
doesn’t have good support nowadays, the padding hack is used to mimic the responsive image behavior. I can’t wait for better support for aspect-ratio
.
Fit content
I noticed that the user avatar has fit-content
like the below:
.post__avatar {
width: fit-content;
height: fit-content;
}
I don’t really know the reason for this, since removing them didn’t break the layout or something.
Viewport units
I really like the usage of viewport units for the vertical padding. Here is how it’s used:
.wrapper {
padding: 4vh 20px 0;
}
Box sizing
The main wrapper has a 20px
padding on the left and righ sides, so I noticed that the width
is like the below:
.wrapper {
padding: 4vh 20px 0;
width: calc(100% - 40px);
}
This is because box-sizing
is set to content-box
(the default). I’m not sure about the reason for that?

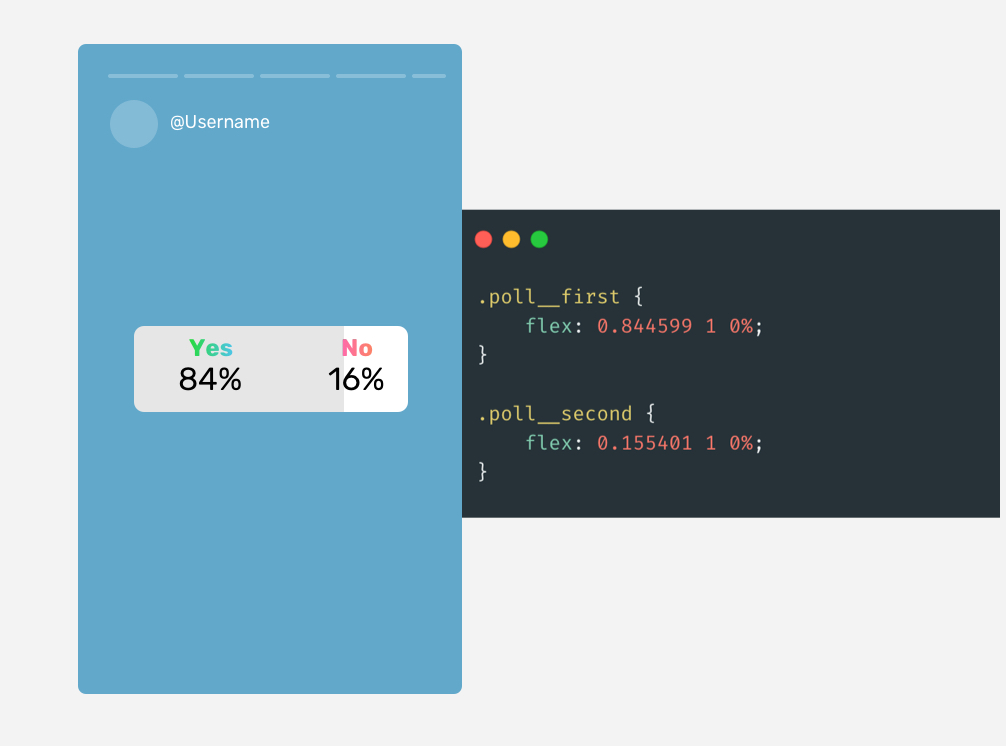

Story Poll
This is related to the Instagram stories poll. If you don’t know it, it’s simply a UI widget that includes two answers. When the user picks one of the answers, the percentage is revealed.
What I really liked is the usage of a precise value for the flex-grow
property. Isn’t that just interesting?
.poll__first {
flex: 0.844599 1 0%;
}
.poll__second {
flex: 0.155401 1 0%;
}
That’s all for this article. I look forward to other parts of it where I get curious and inspect more websites.
