The Basics of Anchor Positioning

In this article, I will cover the basics of Anchor Positioning and how I wish I had learned it earlier. Please use Chrome on a desktop or laptop if you want to try the interactive demos. If not, I’ve attached a video for most of the demos.

Intro

When learning CSS, you most likely came across the position property and how to position an element outside of its normal flow.

.parent {
  position: relative;
}

.child {
  position: absolute;
  left: 0;
  top: 0;
}

While this works, it has limitations:

• We can’t position the child element relative to anything other than its parent.
• If the child is set to position: relative (for example, to adjust its z-index), we can’t position it relative to an outer parent.
• You might need to restructure the HTML, which is not ideal.

The problem

What’s better than facing an actual problem and trying to solve it with position: absolute? Let’s start.

Here we have a simple card component that contains an image, title, description, and a category tag.

<div class="card">
  <div class="card-thumb">
    <img src="thumb.jpg" alt="Coffee" />
  </div>
  <div class="card-header">
    <a href="#" class="tag">Coffee</a>
    <p class="card-title">...</p>
    <p class="card-desc">...</p>
  </div>
</div>

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

I want to position the category tag on top of the image, what should I do? Let’s add position: absolute to the category tag.

.cardTag {
  position: absolute;
  left: 0;
  top: 0;
}

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

Oh, I forgot to add position: relative to the card.

.card {
  position: relative;
}

Perfect, now the category tag is on top of the image.

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

The designer requested it be on the right side instead.

.cardTag {
  position: absolute;
  right: 0;
  top: 0;
}

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

Cool, but on larger screens, we want to change the card layout to horizontal. That means, the image is on the left and the content is on the right.

It’s not working. See the result:

🤷‍♂️

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

In our case, the category tag isn’t part of the image, so we can’t position it at the right corner of the image.

We can hack it.

.cardTag {
  left: 84px;
}

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

This is a fragile solution that breaks easily. If the image size or gap changes, it will fail.

Anchor Positioning

In CSS, we can now position an element relative to another element, regardless if it’s a parent or not.

First, we need to define the anchor element. In our case, it’s the card thumbnail wrapper.

.card-thumb {
  anchor-name: --card-thumb;
}

Next, we can reference that anchor for the category tag.

.card-thumb {
  anchor-name: --card-thumb;
}

.cardTag {
  position-anchor: --card-thumb;
}

Now that the anchor is defined, we can use the inset properties to position the category tag.

.card-thumb {
  anchor-name: --card-thumb;
}

.cardTag {
  position-anchor: --card-thumb;
  right: anchor(right);
  top: anchor(top);
}

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

Now, wherever the anchor element is, the category tag will stay positioned relative to it.

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

Or this:

Coffee

The art of making cafe-quality coffee at home

Learn how to make the best coffee at home, by following some simple steps.

Position an element relative to its anchor edges

The following figure shows an anchor element with its four edges. In CSS, we can position a target in relation to those inset edges.

When using the anchor() function, we can use one or more of the four edges (top, right, bottom, left).

See the following demo and try to change the values.

Remember: the tag doesn’t live in the same container as the card thumbnail. Here is a reminder of the HTML:

<div class="card">
  <div class="card-thumb">
    <img src="thumb.jpg" alt="Coffee" />
  </div>
  <div class="card-header">
    <a href="#" class="tag">Coffee</a>
    <!-- ... -->
  </div>
</div>

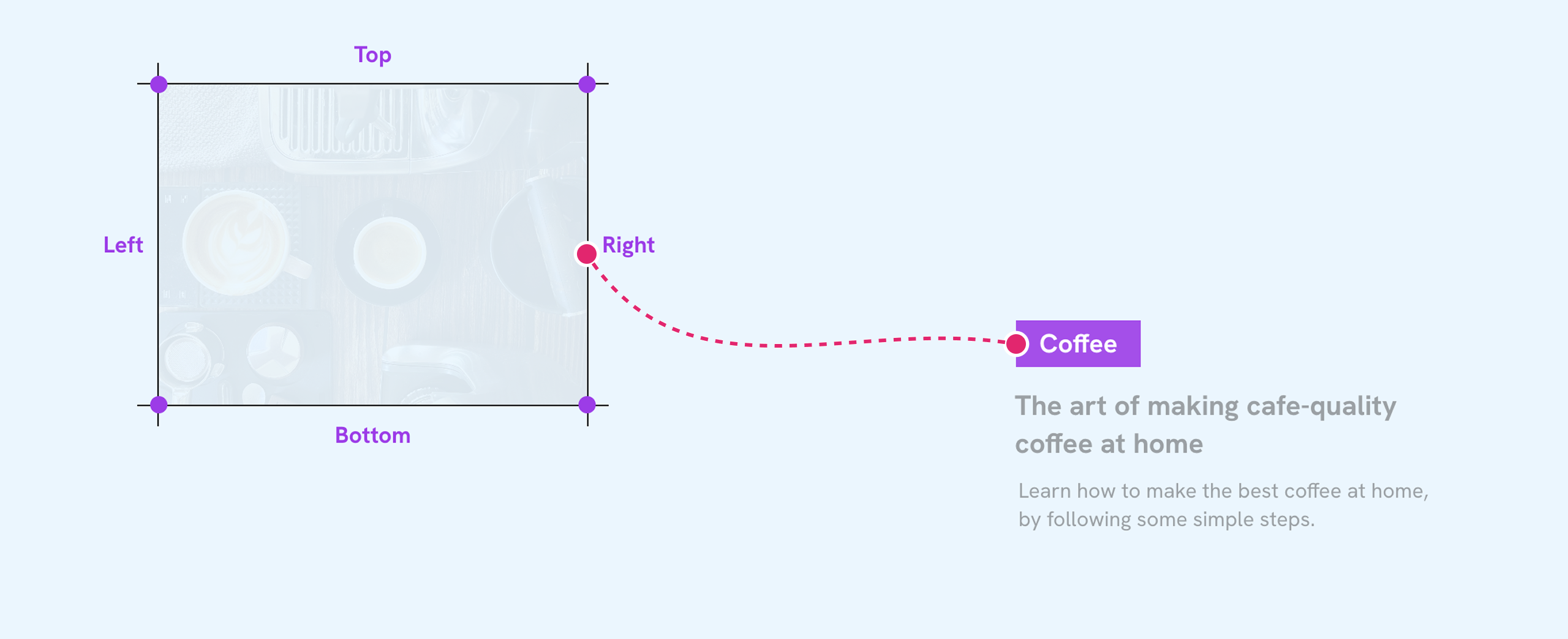

Anchor positioning gives us the ability to connect one element to another, as shown in the following figure.

Position an element with position-area

This works a bit differently than the anchor() function by using the position-area property. In short, it creates a 3x3 grid around the anchor element.

Click on any cell in the demo below and see how the tag position changes.

This demo doesn't work correctly in Safari TP. I haven't had the time to debug why. I'm using query units to create the anchor grid.

Spanning multiple cells

We can position the tag on one or multiple cells at once. In the following demo, try to click and drag on the center cell (vertically or horizontally) and notice how the value changes to span-*.

At first, I found span-* confusing. As a visual learner, I created a simple illustration to make sense of it.

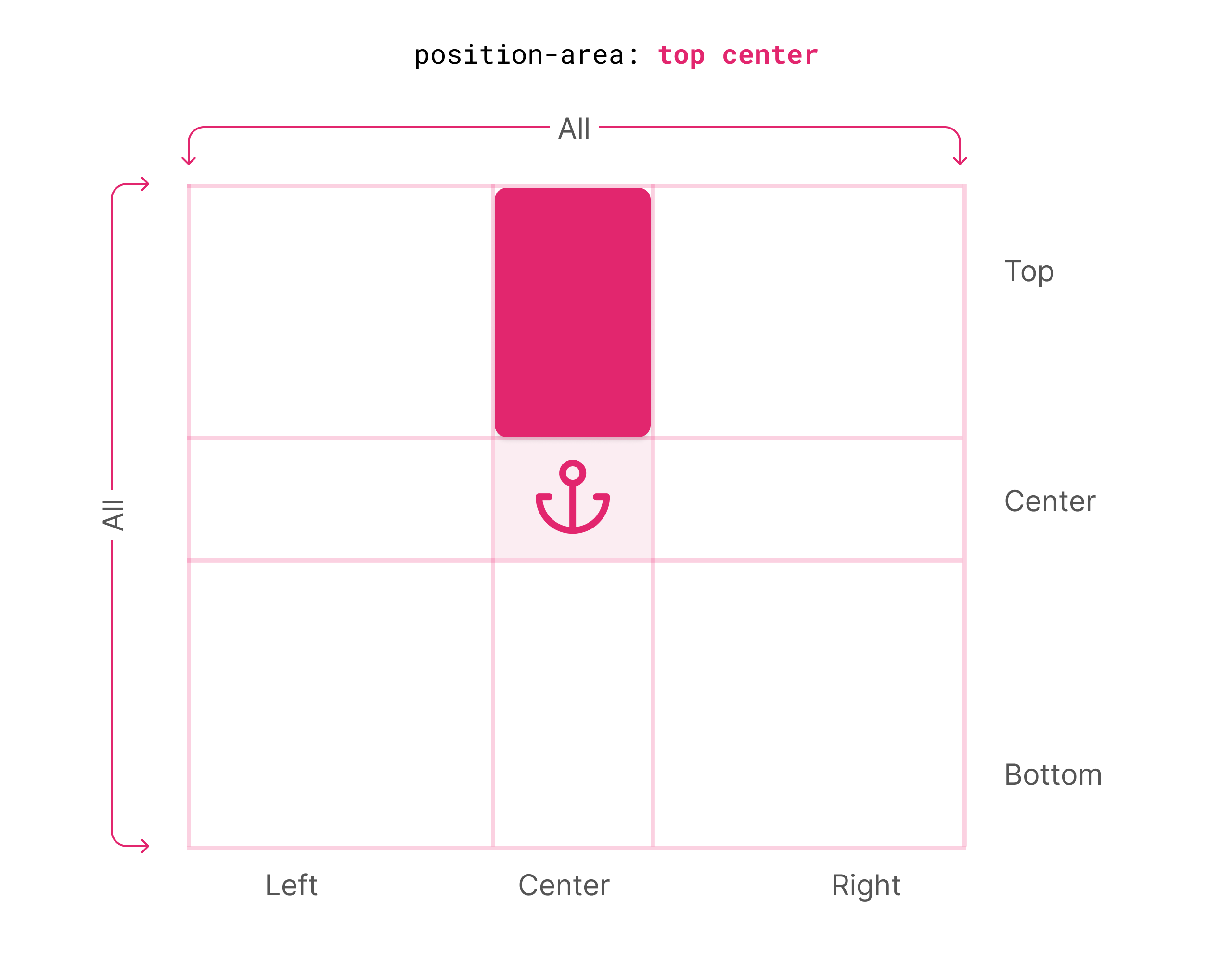

Let’s assume the following:

.target {
  position-area: top center;
}

The target is positioned in the center cell at the top. What if we want to make it take two cells?

.target {
  position-area: top span-right;
}

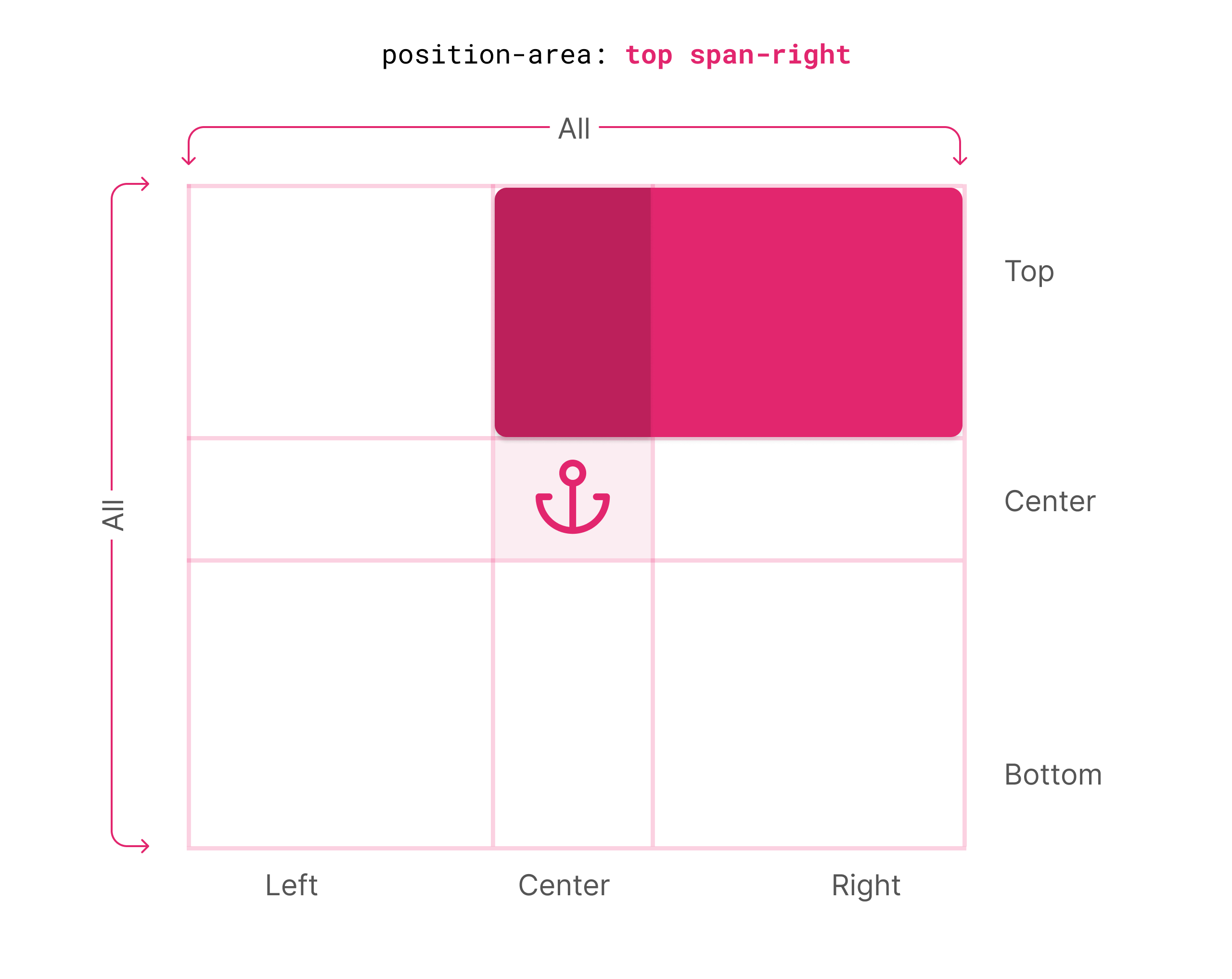

In the above example, span-right means: I want the target to take the width of the center cell all the way to the right cell.

See the following figure.

In the following interactive demo, you can try how the span works:

• Click on a cell
• Click on the center cell and drag to the left and right, notice what happens.

You can switch between the interactive demo and the video.

I hope this is clear now. Let’s explore an exciting feature.

Position try

With Anchor Positioning, it’s not only about positioning a target according to its anchor. The nature of positioning doesn’t guarantee that a positioned element will fit perfectly within the viewport.

As an example, if the anchor element is at the top of the viewport, and the target is positioned on top of it, it will be hidden.

Take a look at the following figure.

Ideally, the target element (popup) should switch from the top to the bottom of the anchor element.

Previously, we relied on JavaScript for this. With Anchor Positioning, we can now use the position-try-fallbacks property.

We can use multiple values, such as:

• position area values
• dashed-indent
• try-tactic values

For the sake of simplicity, I’ll only show the flip-block and flip-inline values.

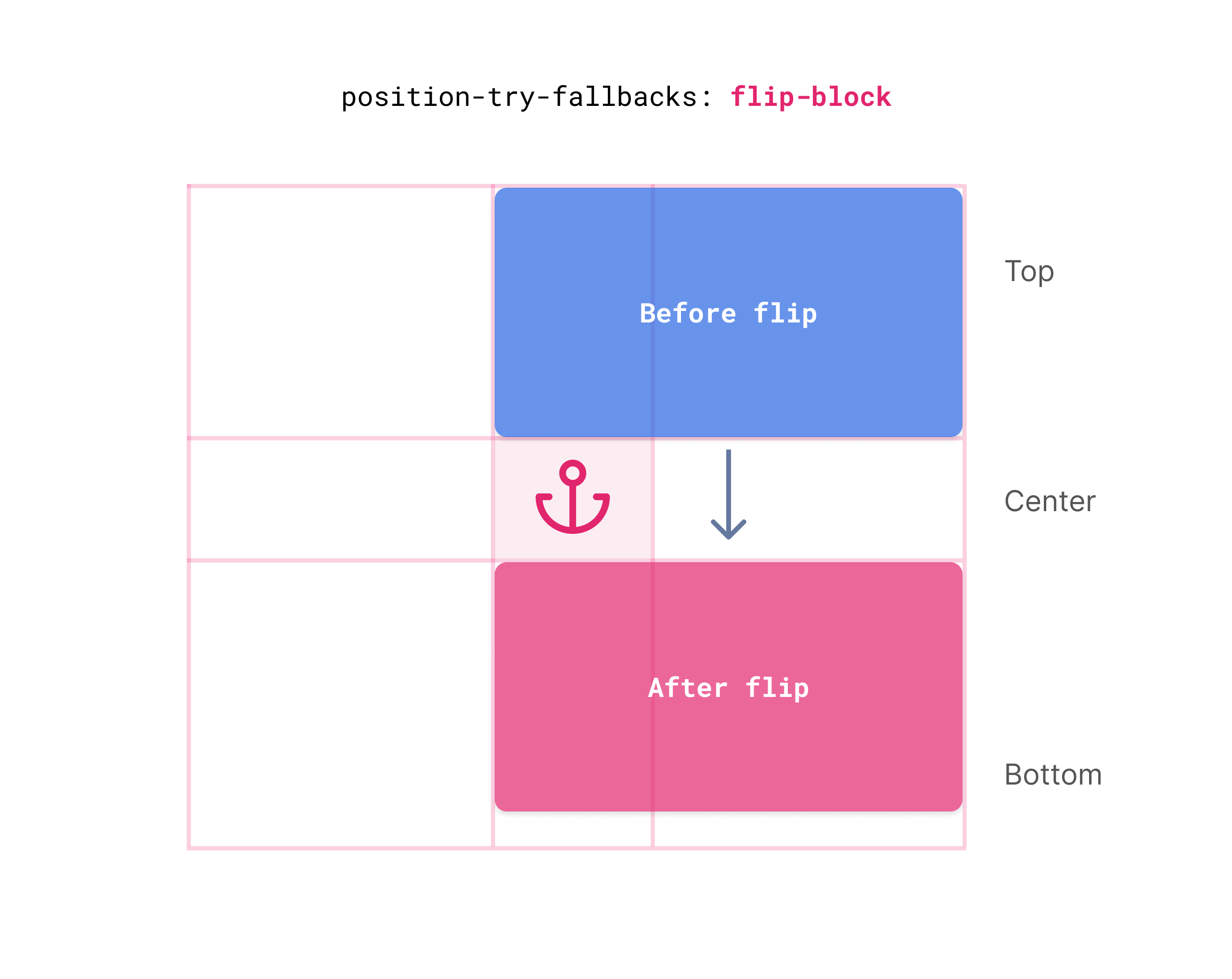

Flip-block

From its name, it will flip the target element on the block axis if the target is overflowing its containing block.

See the following CSS:

.popup {
  position-area: top span-right;
  position-try-fallbacks: flip-block;
}

To make it easier to understand, I made an interactive demo that shows how flipping works. Try to scroll up and down and see how the popup flips.

Not only that, but I also added the anchor areas visualizer. You can see where the target is positioned and anticipate its next position.

Try scrolling again now.

Got it? This is how flipping works. The same can also work for the inline axis

Flip-inline

In my example, I used span-right in the position-area property. We can add flip-inline to the position-try-fallbacks property to flip the position when there isn’t enough space.

.popup {
  position-area: top span-right;
  position-try-fallbacks: flip-inline;
}

Click the next button below (desktop only) and notice how the popup’s horizontal position changes.

Conclusion

There’s much more we can do with Anchor Positioning, and there are more features that I haven’t explored yet like:

• position visiblity
• logical values
• complex position-try
• ..and more

Finally, I look forward to stable support in Firefox and Safari.

Thank you for reading!
